JBL On Stage 200iD (OS-200iD)
Harman Kardon; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harman Kardon; New York
- Year
- 2008 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 295246
Source: original manual.
Source: original manual.
Source: original manual.
Source: Original manual.

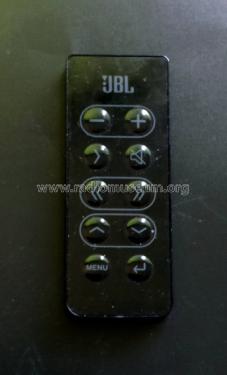

Other photos, my!!
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Other Combination - see Notes; Loudspeaker + integr.Amplifier
- Power type and voltage
- Powered by external power supply or a main unit. / 12 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: JBL On Stage 200iD - Harman Kardon; New York
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 359 x 64 x 110 mm / 14.1 x 2.5 x 4.3 inch
- Notes
-
Power consumption: 20 watt – frequency response: 40 Hz – 20,000 Hz – signal to noise ratio: > 85 db – two phoenix neodymium transducers - computer-optimized equalization (COE) - optimized compression topology (OCT) - compatibility: iPod mini 1G; iPod nano 1G, 2G, 3G; iPod 3G, 4G, 5G, 5.5G, 6G; iPod touch; iPhone - 3.5-mm mini jack allows connection of other audio devices such as MP3 and CD players, desktop computers, satellite radios, and laptops - volume control +/- and power switch.
Made in China.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
