• Country
• Italy

• Manufacturer / Brand
• LARE (L.A.R.E.); Torino

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203619

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBC3 EL3N AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

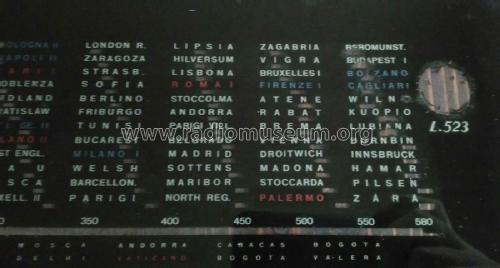

• Model: L.523 - LARE L.A.R.E.; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 280 x 320 mm / 24.4 x 11 x 12.6 inch

• Net weight (2.2 lb = 1 kg)
• 10.9 kg / 24 lb 0.1 oz (24.009 lb)

• Author
• Model page created by Pietro Ferrante. See "Data change" for further contributors.
