RV2/11
Larimart; Roma
- Country
- Italy
- Manufacturer / Brand
- Larimart; Roma
- Year
- 1970 ??
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 265221
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 11500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Dry Batteries / 15 Volt
- Loudspeaker
- - For headphones or amp.
- Power out
- 0.85 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org

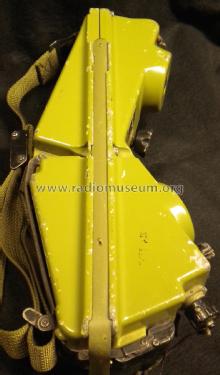

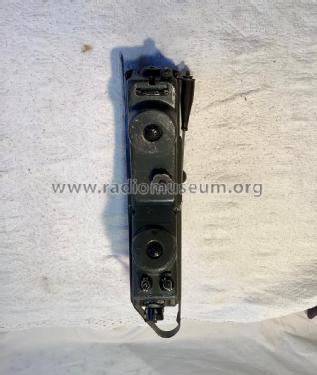

- Model: RV2/11 - Larimart; Roma
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 322 x 67 x 115 mm / 12.7 x 2.6 x 4.5 inch
- Notes
-
È la versione italiana della francese Thomson TR-PP-11 costruita su licenza dalla Larimart di Roma. In dotazione all'esercito italiano negli anni 70/80.
Opera in FM tra i 47 e i 57MHz con sei canali quarzati. 200 canali possibili con spaziatura di 50kHz.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Author
- Model page created by Stefano Cerchi. See "Data change" for further contributors.
