• Country
• Germany

• Manufacturer / Brand
• PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg

• Year
• 2000 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 197069

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

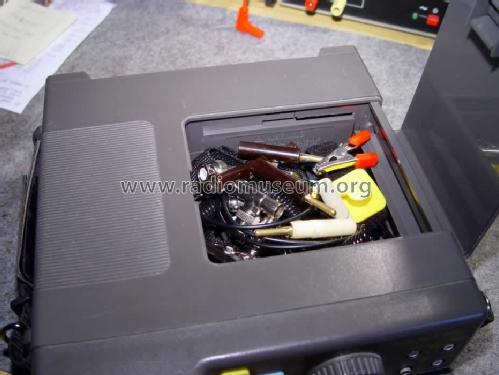

• Model: Digital True RMS Multimeter PeakTech 380 eff - PeakTech GmbH, Heinz-Günther

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 218 x 195 x 73 mm / 8.6 x 7.7 x 2.9 inch

• Notes
• Features :
  • 3¾ Digital Multimeter True RMS, 4000 counts
  • Basic Accuracy 0.1%
  • Analog scale (Bar Graph)
  • Auto Ranging/ Manual Mode
  • Backlight display
  • Data hold function
  • Min/Max hold function
  • Relative mode
  • Memory store and recall
  • Delay hold function
  • Functional temperature range 0ºC... + 50ºC
  • DC Voltage measurement 400.0 mV to 600 V
  • AC Voltage measurement 4.000 V to 600 V
  • DC Current measurement 4.000 mA to 10.00 A
  • AC current measurement 4.000 mA to 10.00 A
  • Resistance measurement 400.0 Ω to 40.00 MΩ
  • Diode Continuity
  • Wide range capacitance measurement 4.000nF to 40.00 µF
  • Frequency measurement 100.0Hz to 1.000MHz


• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
