191

Lavis S.A., Labelson; Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1964–1966
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 238970

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

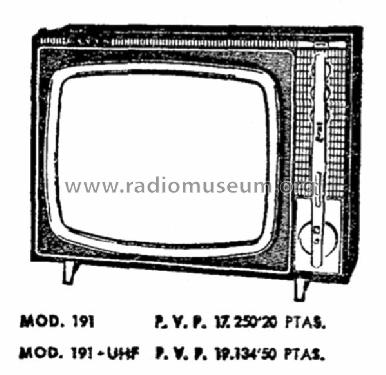

  • Model: 191 - Lavis S.A., Labelson;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • Lavis, S.A. (Labelson), modelo 191

    TV B/N 19"

    • Selector rotativo de VHF
    • 2 altavoces, uno de 4" Ø, y otro elíptico de 5" x 7"



  • Price in first year of sale
  • 17,250.20 ESP
  • Mentioned in
  • ABC Madrid, 21/09/1965, p.70
  • Literature/Schematics (1)
  • -- Schematic (Esquemario TV REDE, Tomo II, 1964)
