• Country
• Spain

• Manufacturer / Brand
• Lavis S.A., Labelson; Barcelona

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194771

Click on the schematic thumbnail to request the schematic as a free document.

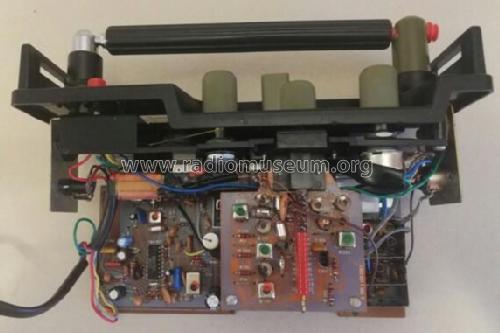

• Number of Transistors
• 4

• Semiconductors
• BF194 BF195 SF196 SF195 SFE-10.7MA S042 TBA700

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / C: 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Jungla - Lavis S.A., Labelson;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 190 x 85 mm / 9.4 x 7.5 x 3.3 inch

• Notes

• Lavis, S.A. (Labelson). Radiotransistor portátil TR Jungla

  Bandas:

  • Onda media (OM): 530 - 1.650 kHz
  • Onda Pesquera (P): 1.400 - 4.000 kHz
  • Onda Corta (OC): 5,8 - 16 MHz
  • Frecuencia Modulada (FM): 87,5 - 108 MHz



• Net weight (2.2 lb = 1 kg)
• 1.650 kg / 3 lb 10.1 oz (3.634 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
