• Country
• Spain

• Manufacturer / Brand
• Lavis S.A., Labelson; Barcelona

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 325819

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• SF194 SF195 BF194 BF194 BF194 BF194 BC149 BC148 MC140 AC180 AC180 SC109 AC188 SFD112 SFD86 SFD86 1N457 SD530 SD530 1N541 S041 or. TBA120 TBA700

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / C: 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Cassette RC-3003 - Lavis S.A., Labelson;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 195 x 80 mm / 12.8 x 7.7 x 3.1 inch

• Notes

• Lavis, S.A., Labelson, Radio Cassette RC-3003

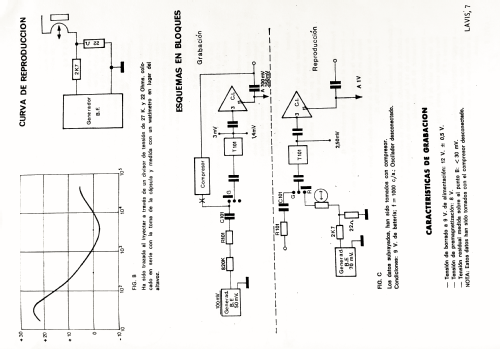

  The schematic states two transistors AC780 in the motor control circuit. This is a misprint and should read as AC180.
