RC-3002 C (RCP-3002 C)

Lavis S.A., Labelson; Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 305013

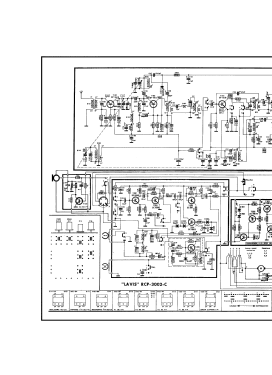

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 20
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 125; 220 / D: 6 x 1,5 / 9-14 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RC-3002 C - Lavis S.A., Labelson;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 325 x 195 x 80 mm / 12.8 x 7.7 x 3.1 inch
  • Notes

  • Lavis, S.A., (Labelson), RC-3002 C (RCP-3002 C)

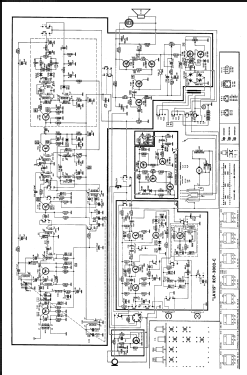

    El esquema muestra dos transistores AC780 en lugar de los correctos AC180.

    También se muestran 21 transistores pero contamos 20 al no tener en cuenta el del interior del micrófon electrec, que forma parte integral del mismo y por tanto no es reparable.
