• Country
• Spain

• Manufacturer / Brand
• Lavis S.A., Labelson; Barcelona

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 260111

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF121 AF125 AF116 AF116 AF116 AC126 AC126 AC188 AC188 SFD107 1N542

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1,5 / DC: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

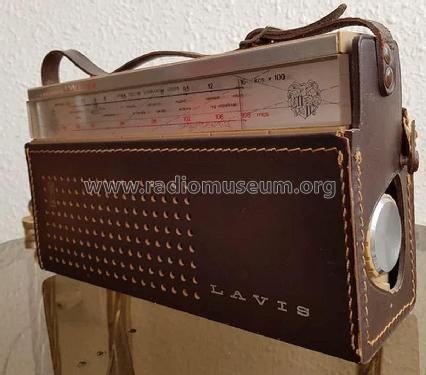

• Model: RT-420 AM-FM ET-47C - Lavis S.A., Labelson;

• Notes

• Lavis, S.A., (Labelson), Receptor TR-420 (T-420) AM-FM

• Mentioned in
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
