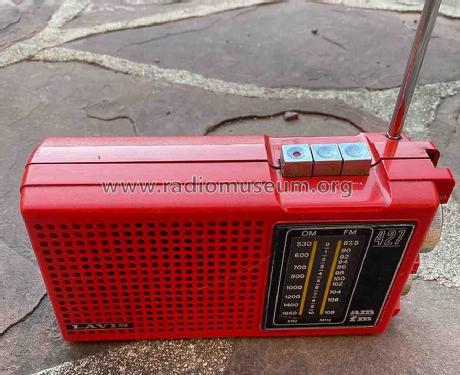

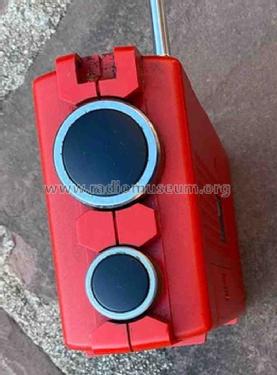

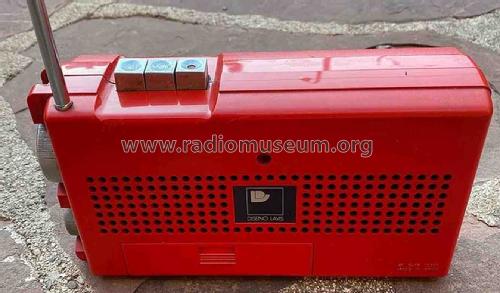

T-427 AM-FM (TR-427)

Lavis S.A., Labelson; Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1977 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 358863

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / C: 4 x 1,5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Power out
  • 0.26 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: T-427 AM-FM - Lavis S.A., Labelson;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 225 x 125 x 65 mm / 8.9 x 4.9 x 2.6 inch
  • Notes

  • Lavis, S.A., (Labelson), Receptor TR-427 AM/FM (T-427)

    2 circuitos integrados, 6 transistores, 3 diodos

    Colores Negro y Rojo Lambda

  • Net weight (2.2 lb = 1 kg)
  • 0.960 kg / 2 lb 1.8 oz (2.115 lb)
  • Mentioned in
  • Catálogo Lavis finales años 70 (verde)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
