• Country
• Spain

• Manufacturer / Brand
• Lavis S.A., Labelson; Barcelona

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 260167

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 AC126 AC126 AC128 AC128 SFD112 OA79

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4 x 1,5 / DC: 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

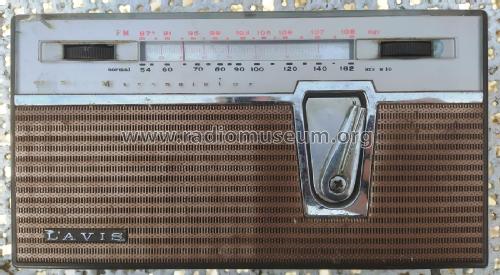

• Model: 750 FM/AM transistor - Lavis S.A., Labelson;

• Price in first year of sale
• 3,273.70 Pts

• Mentioned in
• -- Schematic (Esquemas de Radio-Receptores y Autorradios; Ed. Janzer; tomo 1)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
