- Country
- Spain
- Manufacturer / Brand
- Lavis S.A., Labelson; Barcelona
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112922

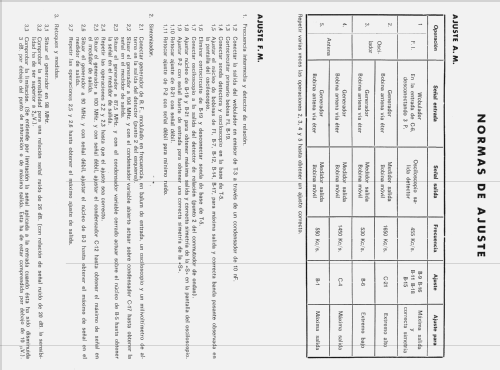

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 1 AM circuit(s) 1 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T-931 - Lavis S.A., Labelson;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 153 x 94 mm / 12.2 x 6 x 3.7 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 2.4 kg / 5 lb 4.6 oz (5.286 lb)
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I I
- Mentioned in
- - - Manufacturers Literature (Tesis doctoral "Receptores de Radiodifusión Sonora: Panorámica Histórica y Situacion Actual".)
- Author
- Model page created by Ramon Gancedo. See "Data change" for further contributors.
