• Country
• Spain

• Manufacturer / Brand
• Lavis S.A., Labelson; Barcelona

• Year
• 1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 262858

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

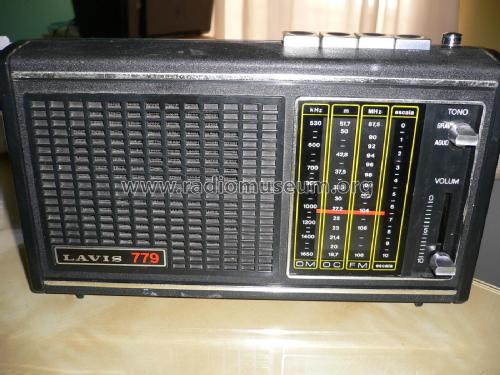

• Model: TR-779 - Lavis S.A., Labelson;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 150 x 70 mm / 10.4 x 5.9 x 2.8 inch

• Notes

• Conmutador de grave-agudo. Antena de 75 cm. de longitud. 2 IC.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Juan Bautista Ruiz Pérez. See "Data change" for further contributors.

• Other Models

• Here you find 113 models, 99 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
