Dual Trace Portable Oscilloscope LBO-308S

Leader Electronics Corp.; Yokohama

Data
Forum
Pictures
Collections

  • Year
  • 1976 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 342720

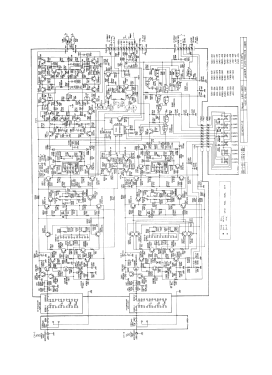

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / AC: 90-130; 180-260 / DC: 11-30 / Batt: 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Dual Trace Portable Oscilloscope LBO-308S - Leader Electronics Corp.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 235 x 120 x 320 mm / 9.3 x 4.7 x 12.6 inch
  • Notes

  • Leader Electronics Corp., Dual Trace Portable Oscilloscope LBO-308S

    Vertical amplifier DC or 2 Hz to 20 MHz (DC or AC)
    Horizontal amplifier DC or 2 Hz to 1 MHz
    Time base 10 μS/Div to 200 μS/Div, 18 steps, 1-2-5 sequence

    Weight 5kg without battery pack

  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)

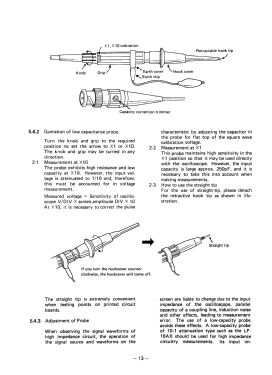

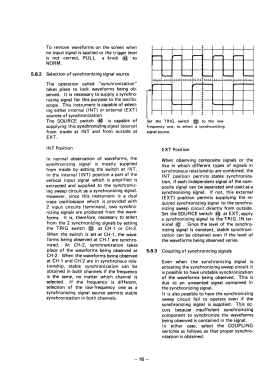

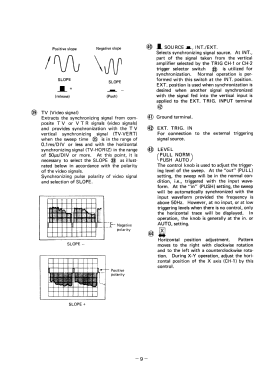

  • Literature/Schematics (1)
  • -- Original-techn. papers. (Instruction manual and Service manual)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
