• Country
• Japan

• Manufacturer / Brand
• Leader Electronics Corp.; Yokohama

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 342721

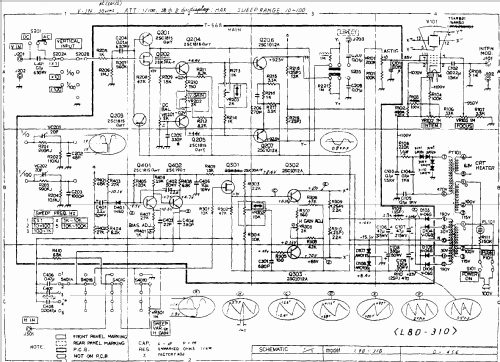

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 95FB31

• Number of Transistors
• 12

• Semiconductors
• 2SC1815 2SK30 2SC1815 2SC1815 2SC1815 2SC1012 2SC1012 2SC1815 2SC1907 2SK30 2SC1012 2SC1012 1N60

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope LBO-310 - Leader Electronics Corp.;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 125 x 180 x 300 mm / 4.9 x 7.1 x 11.8 inch

• Notes

• Leader Electronics Corp., Oscilloscope LBO-310

  Vertical amplifier DC or 2 Hz to 4 MHz (DC or AC)
  Input:
          Z= 1 MΩ
          600 V max.
  Horizontal amplifier DC to 250 kHz
  Time base 10 Hz to 100 kHz in 4 ranges
  Direct CRT connection: to 450 MHz at 10 Vp-p or better

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
