Oscilloscope LBO-310A
Leader Electronics Corp.; Yokohama
- Country
- Japan
- Manufacturer / Brand
- Leader Electronics Corp.; Yokohama
- Year
- 1976 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 127859
Funkschau 4.1976
Treffen Gondebas
Treffen Gondebas
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 75ARB31
- Number of Transistors
- 14
- Semiconductors
- 2SC458 2SK34 2SC458 2SC458 2SC458 2SC458 2SC458 2SC1012 2SC1012 2SC458 2SC458 2SK34 2SC1012 2SC1012 1N60 W06G
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope LBO-310A - Leader Electronics Corp.;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 125 x 180 x 300 mm / 4.9 x 7.1 x 11.8 inch
- Notes
-
Frequenzbereich 0 bis 4 MHz, DC-gekopelte vertikale und horizontale Eingänge, Wellenform bis 450 MHz darstellbar über direkten Anschluss an Ablenkplatten (≥ 10Vpp). Messfläche 6 x 4,8 cm.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Price in first year of sale
- 399.00 DM
- Mentioned in
- Funkschau (4.1976)

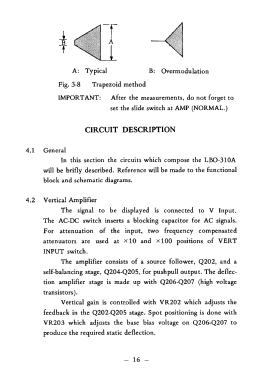

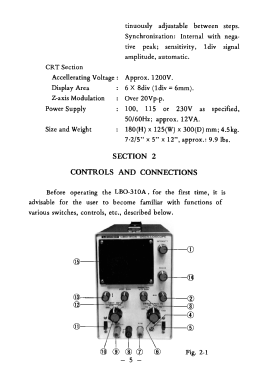

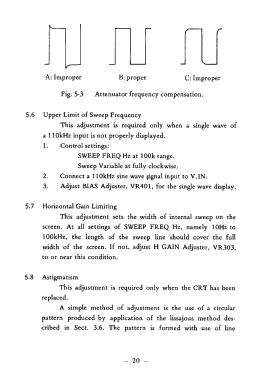

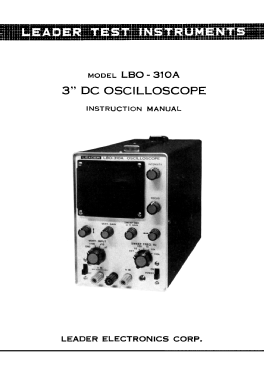

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
