Synchroscope LBO-301

• Country
• Japan

• Manufacturer / Brand
• Leader Electronics Corp.; Yokohama

• Year
• 1976 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 127860

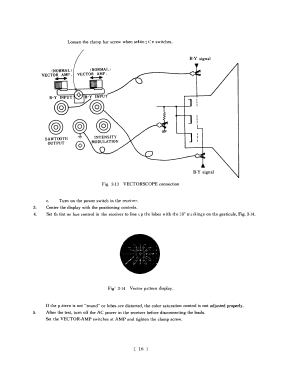

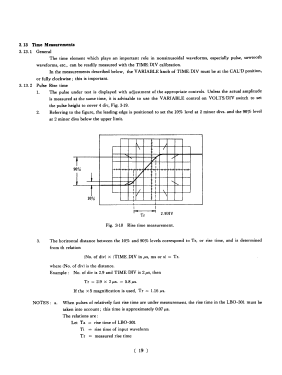

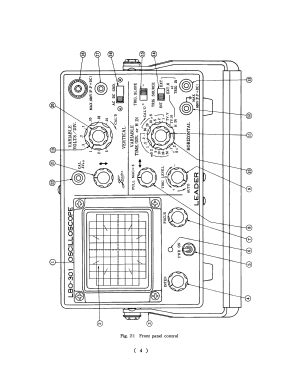

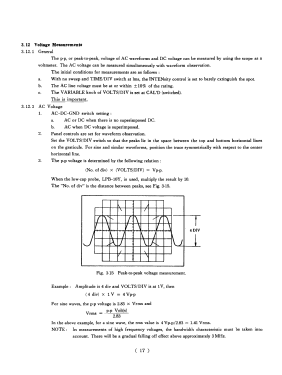

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 75AKB1 or M6525B1B

• Number of Transistors
• 47

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 115; 200; 215; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Synchroscope LBO-301 - Leader Electronics Corp.;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 8 x 4.75 x 12 inch / 203 x 121 x 305 mm

• Notes

• Frequenzbereich 0 bis 5 MHz, Meßmöglichkeit bis 7 MHz, Zeitmaßstab 0,2 µS/6mm, Dehnung fünffach, Trigger Automatik, Meßfläche 6 x 4,8 cm.

  Two transistors 2SC458 used as PTO



• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 1,300.00 DM

• Mentioned in
• Funkschau (4.1976)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
