• Country
• Japan

• Manufacturer / Brand
• Leader Electronics Corp.; Yokohama

• Year
• 1984 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 210466

• Number of Tubes
• 1

• Valves / Tubes
• 150BYB31

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 120; 200; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

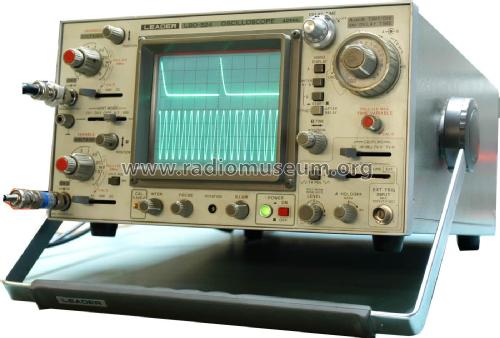

• Model: Zweistrahl Oszilloskop LBO-524L - Leader Electronics Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 160 x 375 mm / 11.4 x 6.3 x 14.8 inch

• Notes
• Zweistrahl Oszilloskop mit Doppel-Zeitbasis und 6" Rechteck-Röhre.
  Bandbreite: 35 MHz, Empfindlichkeit bei 40 MHz: 5 mV/div, Empfindlichkeit bei 5 MHz: 0.5 mV/div, Maximum sweep: 20 ns/div (Mag X 10), V-Modes: CH1/CH2/CHOP/ALT/ADD,
  Vielfältig einstellbare Triggerungsmodi mit variabler Verzögerung (Normal/Auto/TV-V/TV-H/External/Holdoff), Andere features: Invers CH2, Z-Input, Generator für Kalib. (1 kHz, 0,5Vpp);

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 2,684.00 DM

• Mentioned in
• Katalog Mütron 1984

• Author
• Model page created by Harald Schlosser. See "Data change" for further contributors.
