• Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 46109

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 562 - Lear Inc.; Grand Rapids and
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • internal loop-antenna
  • External source of data
  • Ernst Erb

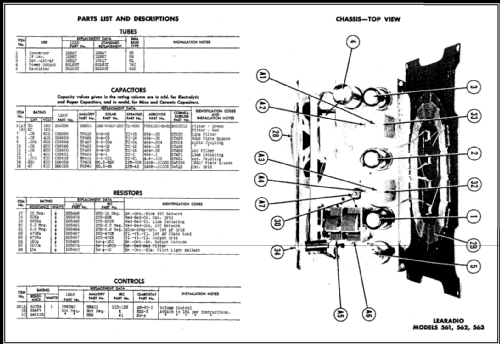

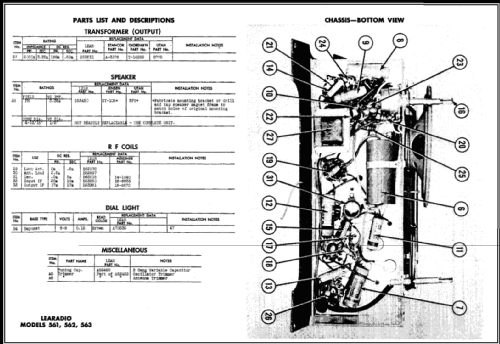

  • Circuit diagram reference
  • Rider's Perpetual, Volume 15 = 1947 and before
