• Country
• United States of America (USA)

• Manufacturer / Brand
• Lear Inc.; Grand Rapids and Los Angeles

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46132

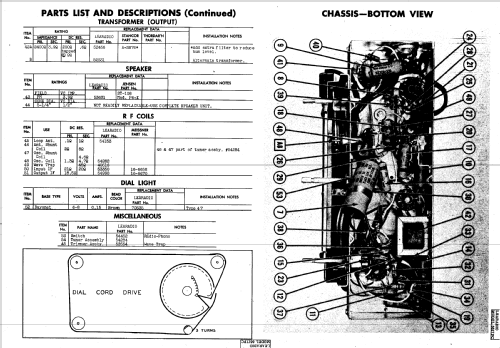

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SF7 12SK7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 6617PC - Lear Inc.; Grand Rapids and

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 21 x 10.25 x 15.5 inch / 533 x 260 x 394 mm

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 16, Folder 476-22)

• Other Models

• Here you find 46 models, 27 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lear Inc.; Grand Rapids and Los Angeles
