• Country
• United States of America (USA)

• Manufacturer / Brand
• Lear Inc.; Grand Rapids and Los Angeles

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71096

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

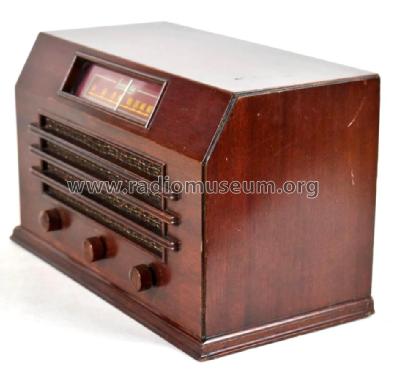

• Model: Learadio 6615 - Lear Inc.; Grand Rapids and

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 07, 1947

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
