• Country
• United States of America (USA)

• Manufacturer / Brand
• Leeds Radio Co.; New York City (NY)

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286847

• Number of Tubes
• 3

• Valves / Tubes
• 77 or 57 77 or 57 41 or 2A5

• Main principle
• TRF with regeneration; Super Regenerativ

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

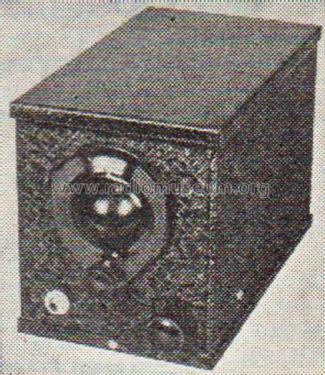

• Model: Receiver 5A - Leeds Radio Co.; New York

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 5 x 6 x 9 inch / 127 x 152 x 229 mm

• Notes

• The Leeds Radio 5A Receiver covers the 5 meter band.

• Price in first year of sale
• 13.75 USD

• Mentioned in

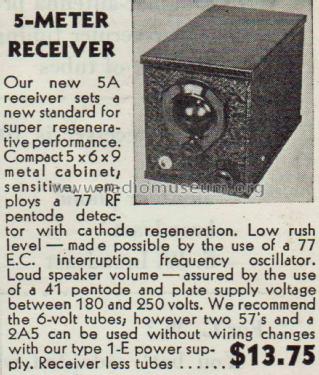

• QST (June 1934)

• Author
• Model page created by Wayne Childress. See "Data change" for further contributors.

• Other Models

• Here you find 15 models, 14 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
