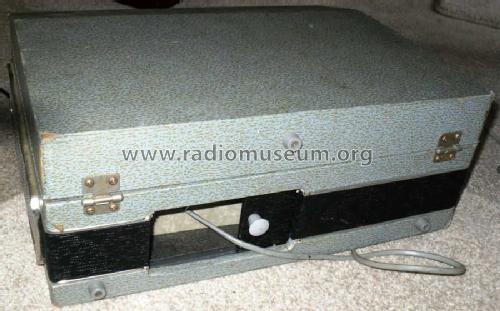

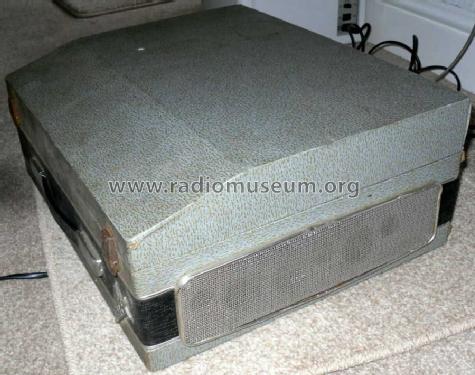

Elpico TR704 Mk 1
Elpico (Brand), Lee Products (Great Britain), Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Elpico (Brand), Lee Products (Great Britain), Ltd.; London
- Year
- 1962 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 151931
-
- Brand: Elpico
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Elpico TR704 Mk 1 - Elpico Brand, Lee Products
- Notes
- Tape recorder, single speed (3.75 ips), 4 track, BSR tape deck.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
