• Country
• Germany

• Manufacturer / Brand
• Lehnert GmbH, (Poppy); Saarbrücken

• Year
• 1978 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 217217

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi System 9000 CD-903 - Lehnert GmbH, Poppy;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 434 x 305 x 134 mm / 17.1 x 12 x 5.3 inch

• Notes

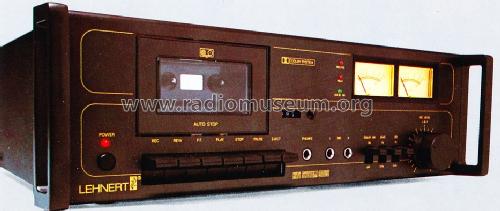

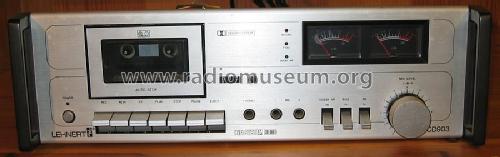

• Lehnert Dolby Deck CD-903.
  LED-Funktionsanzeigen, gedämpfte Cassettenfachöffnung, 2 Anzeigeinstrumente, Bandzählwerk, Dolby NR, Bandsortenumschalter (Equalizier-und Biasschaltung), getrennte Aussteuerungsregler, Auto-Stop, abschraubbare Griffe, Peak(LED-Spitzenwertanzeige), Pausentaste, Kopfhörer- und Mikrofonanschlüsse (Frontseite).
  Bandspuren: 4-Spur, 2-Kanal Stereo, Motor elektronisch gesteuert, 2 IC´s.

• Price in first year of sale
• 480.00 DM

• Mentioned in
• HiFi Jahrbuch 9 S.8-55, Verlag G.Braun Karlsruhe 1978

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
