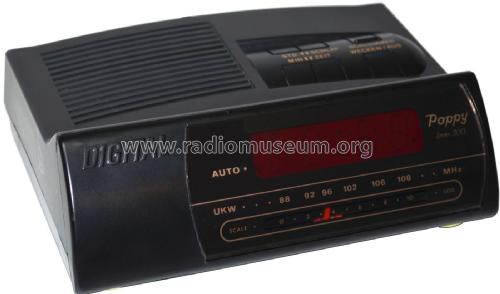

Poppy UKW-Radiowecker Time 300
Lehnert GmbH, (Poppy); Saarbrücken
- Country
- Germany
- Manufacturer / Brand
- Lehnert GmbH, (Poppy); Saarbrücken
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 286061
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Line / Batteries (any type) / 220 & for clock backup1 x 9 Volt

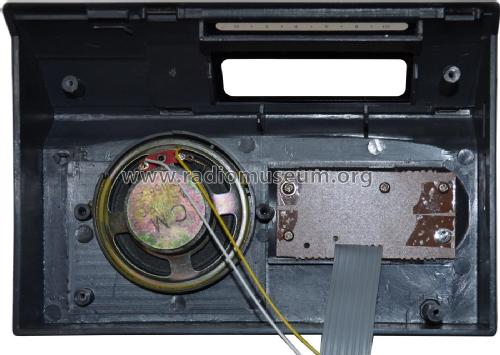

- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Poppy UKW-Radiowecker Time 300 - Lehnert GmbH, Poppy;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 170 x 55 x 115 mm / 6.7 x 2.2 x 4.5 inch
- Notes
-
Uhrenradio mit digitaler Zeitanzeige.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Author
- Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
