Diana Ch= Savoy Stereo 50
Leinetal GmbH & Co. KG, Kreiensen
- Country
- Germany
- Manufacturer / Brand
- Leinetal GmbH & Co. KG, Kreiensen
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26194
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

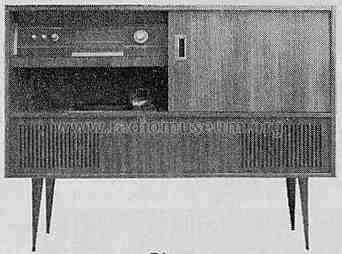

- Model: Diana Ch= Savoy Stereo 50 - Leinetal GmbH & Co. KG,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1130 x 840 x 370 mm / 44.5 x 33.1 x 14.6 inch
- Notes
- Dioden: 2× AA113.
Rundfunk-Chassis = Schaub Lorenz Savoy Stereo 50, Stereo-Decoder nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W;
Phono-Chassis = Telefunken 506S.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1965/1966 / Radiokatalog Band 2, Ernst Erb
