Diana Ch= 666
Leinetal GmbH & Co. KG, Kreiensen
- Country
- Germany
- Manufacturer / Brand
- Leinetal GmbH & Co. KG, Kreiensen
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26775

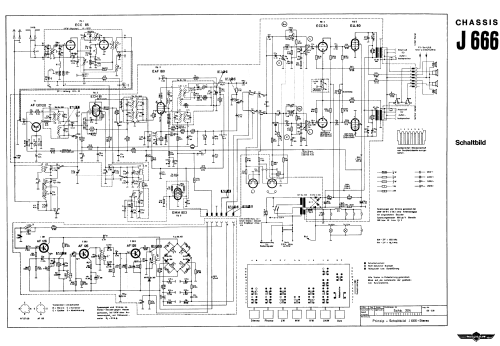

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 1
- Semiconductors
- Tuned circuits
- 6 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Diana Ch= 666 - Leinetal GmbH & Co. KG,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1130 x 840 x 370 mm / 44.5 x 33.1 x 14.6 inch
- Notes
- Transistor: AF137; Dioden: 2× AA113.

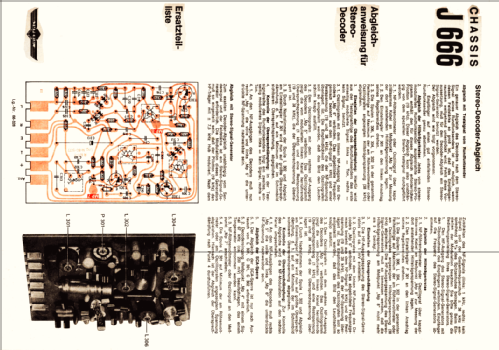

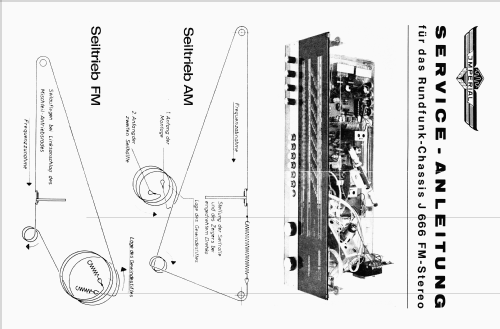

Rundfunk-Chassis = Imperial 666-Stereo, Stereo-Decoder R101 nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
Phono-Chassis = Perpetuum-Ebner PE66.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1966/1967 / Radiokatalog Band 2, Ernst Erb
