• Year
  • 1971/1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 116007

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

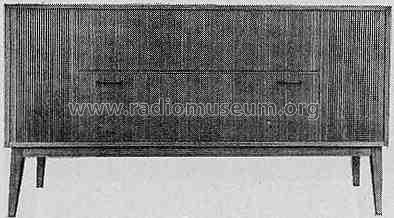

  • Model: Erika Ch= 769 - Leinetal GmbH & Co. KG,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1510 x 820 x 380 mm / 59.4 x 32.3 x 15 inch
  • Notes
  • Rundfunk-Chassis = Imperial 769, Vollstereo, NF-Ausgangsleistung 2× 15 W;
    Phono-Chassis = Philips GC043.
  • Net weight (2.2 lb = 1 kg)
  • 56 kg / 123 lb 5.6 oz (123.348 lb)
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
