Irene Ch= 666-Stereo
Leinetal GmbH & Co. KG, Kreiensen
- Country
- Germany
- Manufacturer / Brand
- Leinetal GmbH & Co. KG, Kreiensen
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27383

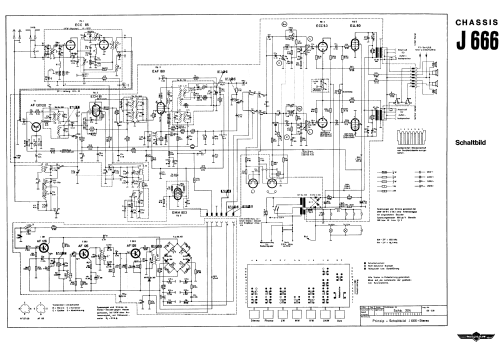

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 4
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Irene Ch= 666-Stereo - Leinetal GmbH & Co. KG,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 720 x 810 x 380 mm / 28.3 x 31.9 x 15 inch
- Notes
- Rundfunk-Chassis = Imperial 666-Stereo, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W;
Philips GC036 oder Dual 1010F.
- Net weight (2.2 lb = 1 kg)
- 30 kg / 66 lb 1.3 oz (66.079 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb
