Irene unbekannt Ch= Schaub-Lorenz
Leinetal GmbH & Co. KG, Kreiensen
- Country
- Germany
- Manufacturer / Brand
- Leinetal GmbH & Co. KG, Kreiensen
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335816
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- Selengleichrichter
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Irene unbekannt Ch= Schaub-Lorenz - Leinetal GmbH & Co. KG,

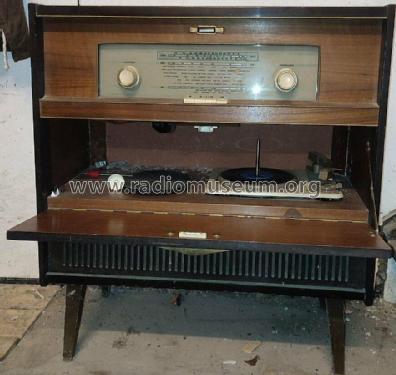

- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 720 x 890 x 390 mm / 28.3 x 35 x 15.4 inch
- Notes
-
Radiochassis ähnlich Schaub-Lorenz Loretta 30, zusätzlich magisches Band.
UKW bis 104 MHz.Plattenwechsler Elac Miracord 16
Siehe auch Irene 131
- Author
- Model page created by Florian Henkel. See "Data change" for further contributors.
