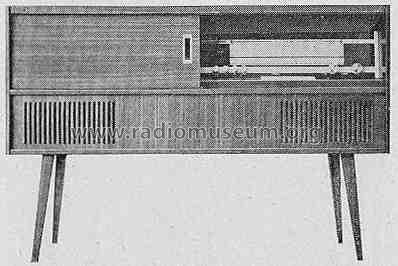

Regine Ch= 664
Leinetal GmbH & Co. KG, Kreiensen
- Country
- Germany
- Manufacturer / Brand
- Leinetal GmbH & Co. KG, Kreiensen
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112946
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 1
- Semiconductors
- AF137
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Regine Ch= 664 - Leinetal GmbH & Co. KG,
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1100 x 720 x 375 mm / 43.3 x 28.3 x 14.8 inch
- Notes
- Rundfunk-Chassis = Imperial 664-Stereo, Stereo-Decoder nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
Phono-Chassis = Elac 160.
- Net weight (2.2 lb = 1 kg)
- 29 kg / 63 lb 14 oz (63.877 lb)
- Source of data
- Handbuch VDRG 1966/1967
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
