58EC Ch= 58E
Lekmek Radio Laboratories; Sydney
- Country
- Australia
- Manufacturer / Brand
- Lekmek Radio Laboratories; Sydney
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170684

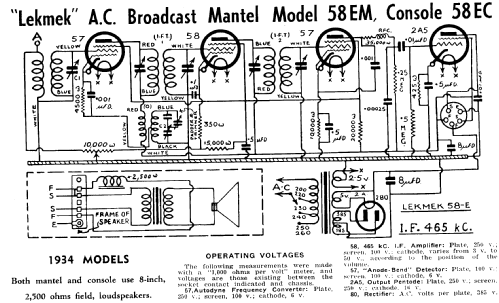

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200-260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 58EC Ch= 58E - Lekmek Radio Laboratories;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 16 x 34 x 10 inch / 406 x 864 x 254 mm
- Price in first year of sale
- 19.00 Aus£
- Literature/Schematics (1)
- -- Original prospect or advert (Radio Trade Annual 1939 P263.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
