• Country
• Germany

• Manufacturer / Brand
• Lembeck & Co.(Lembeck-Radio)

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15782

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

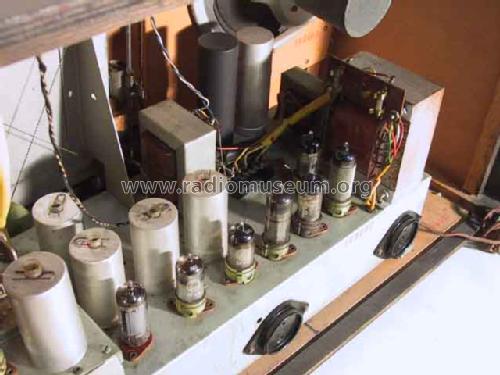

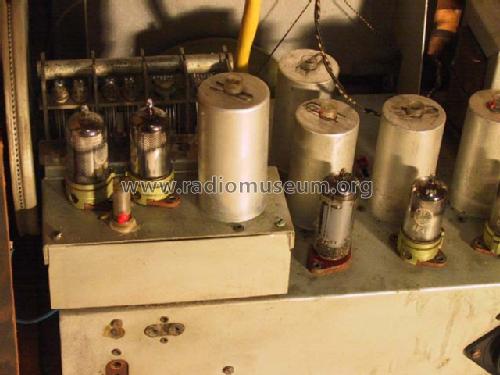

• EF42 ECH42 EF42 EF42 EM4 EBF80 ECC40 ECC40 EB41 EL41 EL41

• Number of Transistors

• Semiconductors
• B250C200

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

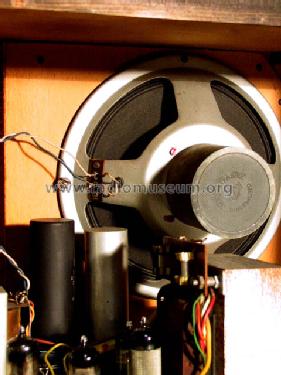

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch

• Power out
• 8 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Atlantis 51W - W51 - Lembeck & Co.Lembeck-Radio

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 664 x 412 x 333 mm / 26.1 x 16.2 x 13.1 inch

• Notes

• Wellenbereiche: LW, 2× MW, 3× KW, UKW.

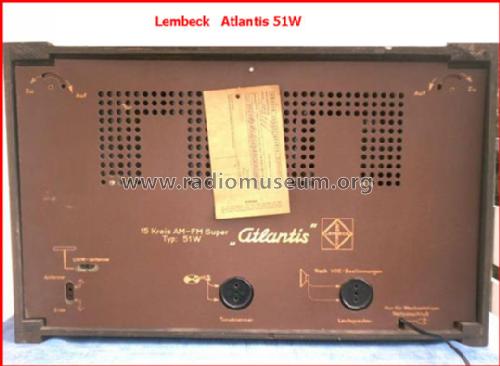

  Die Typangabe auf der Geräterückwand lautet Atlantis 51W, in der Literatur (Grosshandelskatalog, Fachzeitschriften Funkschau und Funk-Technik) ist das Modell dagegen mit W51 bezeichnet.

• Net weight (2.2 lb = 1 kg)
• 21 kg / 46 lb 4.1 oz (46.256 lb)

• Price in first year of sale
• 495.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkschau (5114)

• Literature/Schematics (1)
• Funk-Technik (FT)

• Literature/Schematics (2)
• -- Original-techn. papers.
