• Country
• Germany

• Manufacturer / Brand
• Lembeck & Co.(Lembeck-Radio)

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15768

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Atlantis LS660W - Lembeck & Co.Lembeck-Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 495 x 325 x 250 mm / 19.5 x 12.8 x 9.8 inch

• Notes
• [FT50-482+550] KW-Mikroskop, 18...50 m (16.5 - 6 MHz), UKW-vorbereitet.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 298.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Radio-Mentor (49)

• Literature/Schematics (1)

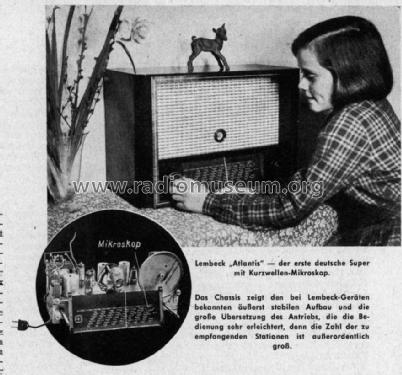

• Radio-Magazin (Das) mit Fernseh-Magazin (1950 Heft Nr.4, S.119)
