Europa 652W var1
Lembeck & Co.(Lembeck-Radio)
- Country
- Germany
- Manufacturer / Brand
- Lembeck & Co.(Lembeck-Radio)
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15785

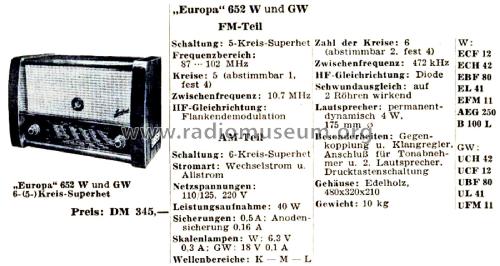

Q: Katalog RF-Großhandel 1951/52
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Europa 652W [var1] - Lembeck & Co.Lembeck-Radio
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 480 x 320 x 210 mm / 18.9 x 12.6 x 8.3 inch
- Notes
- Flanken-Demodulator.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 345.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb
