• Country
• Germany

• Manufacturer / Brand
• Lembeck & Co.(Lembeck-Radio)

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15784

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UCF12 UBF80 UL41 UFM11

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     5 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

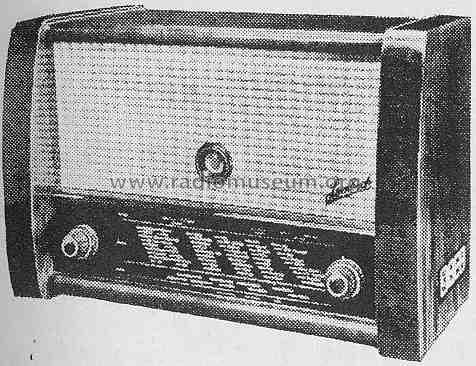

• Model: Europa 652GW [var1] - Lembeck & Co.Lembeck-Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 320 x 210 mm / 18.9 x 12.6 x 8.3 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 345.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb
