• Country
• Germany

• Manufacturer / Brand
• Lembeck & Co.(Lembeck-Radio)

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15792

• Number of Tubes
• 5

• Valves / Tubes
• DK91 DAF91 DF91 DF91 DL92

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Line / Batteries (any type) / AC/DC 110; 220 / 9 & 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

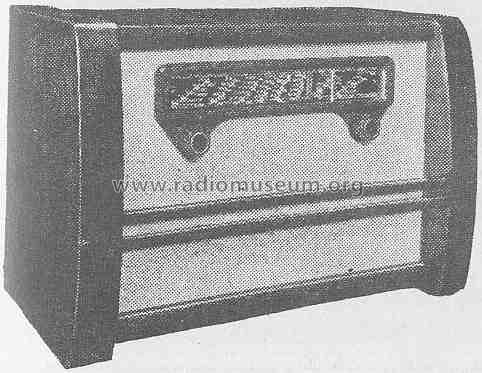

• Model: Orient NB - Lembeck & Co.Lembeck-Radio

• Shape
• Tablemodel, low profile (big size).

• Notes
• Technische Daten wie Kamerad REB651, jedoch Tischgerät.

• Price in first year of sale
• 290.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkschau (5114)
