AC/DC TV CD Radio System TCD-8053

Lenco; Burgdorf

Data
Forum
Pictures
Collections

  • Year
  • 2000 ??
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 271713

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio with other functions
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 220 / R20: 9 x 1,5 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AC/DC TV CD Radio System TCD-8053 - Lenco; Burgdorf
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 330 x 160 x 240 mm / 13 x 6.3 x 9.4 inch
  • Notes

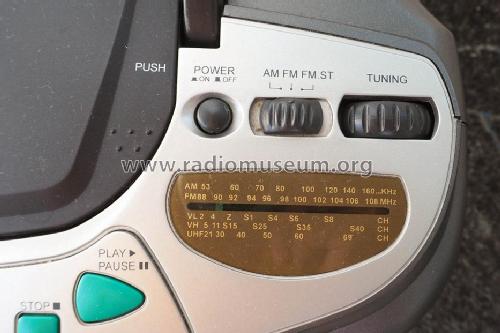

  • Empfangsbereiche:
    Radio AM 530-1600 kHz, FM 88-108 MHz (Stereo-Mono umschaltbar);
    TV (System CCIR B-G) VHF low: Kanäle 2-4, X-S10; VHF high: Kanäle 5-12, S11-S41;
    UHF Kanäle 21-69.

    Schwarz/Weiß-Bildröhre 14cm (5,5"). Sichtbare Diagonale 12,5cm.

    Anschlüsse: Autobatterie 12 Volt; Kopfhörer; Außenantenne (Koax-Kabel).



  • Net weight (2.2 lb = 1 kg)
  • 3.440 kg / 7 lb 9.2 oz (7.577 lb)
  • Mentioned in
  • -- Original prospect or advert
