• Country
• Switzerland

• Manufacturer / Brand
• Lenco; Burgdorf

• Year
• 1990 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 279225

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Powered by external power supply or a main unit. / 12 - 14 V DC Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 1.5 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

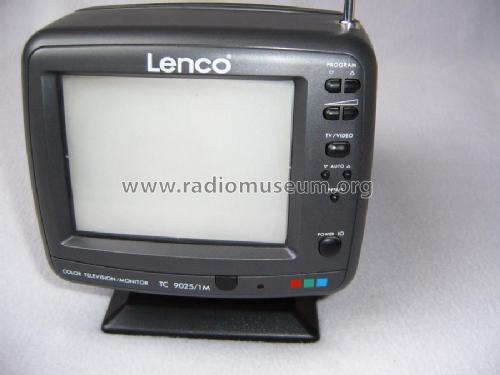

• Model: Color Television / Monitor TC 9025/1M - Lenco; Burgdorf

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 175 x 145 x 225 mm / 6.9 x 5.7 x 8.9 inch

• Notes

• Bilddiagonale 13 cm; Farbbildschirm

  VL = Kanal 2 - 4, S1 - S3
  VH = Kanal 5 - 12, S4 - S40
  U = Kanal 21 - 69



  Sendersuchlauf; Fernbedienung; Timer; Koax-Anschluss für externe Antenne; AV-Buchsen; Telskopantenne; zus. Ohrhörerbuchse

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Author
• Model page created by Willi Lich † 20.10.22. See "Data change" for further contributors.
