• Country
• Switzerland

• Manufacturer / Brand
• Lenco; Burgdorf

• Year
• 1967 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 299643

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC149 BC149 AC117 AC175 AC117 1N965

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

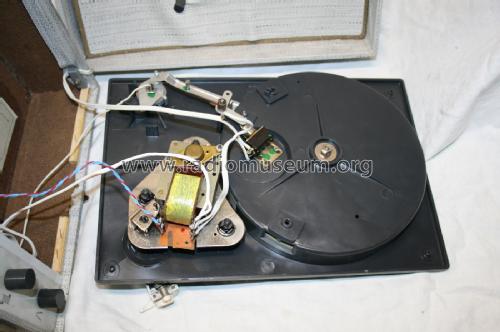

• Model: Phonoboy Ch= V121 - Lenco; Burgdorf

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 315 x 125 x 265 mm / 12.4 x 4.9 x 10.4 inch

• Notes

• Kofferplattenspieler mit 4 Geschwindigkeiten. 16, 33, 45, 78 U/min. Reibradantrieb.

  Eingebauter Verstärker und Lautsprecher.

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Andreas Sommerer. See "Data change" for further contributors.
