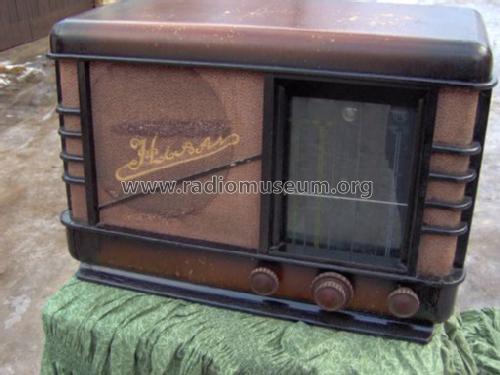

Neva (Нева) 1948, 1949, 1950 1948
Leningrad Metallic Works
- Country
- Soviet Union
- Manufacturer / Brand
- Leningrad Metallic Works
- Year
- 1948–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 77607
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110, 127, 220 Volt

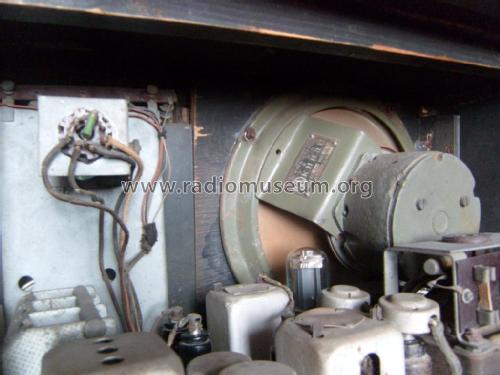

- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 25 cm = 9.8 inch
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Neva 1948, 1949, 1950 [1948] - Leningrad Metallic Works
- Dimensions (WHD)
- 540 x 360 x 270 mm / 21.3 x 14.2 x 10.6 inch
