• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad NOVATOR Works

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101217

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

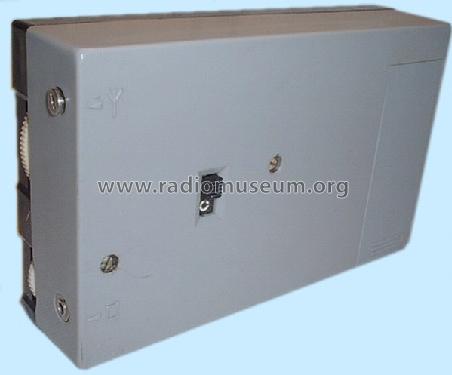

• Model: Almaz {Алмаз} 401 - Leningrad NOVATOR Works

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 134 x 83 x 34 mm / 5.3 x 3.3 x 1.3 inch

• Notes
• "Almaz" - translation - "Diamond".

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Mentioned in
• - - Data from my own collection

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
