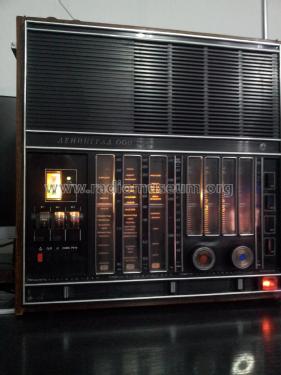

Leningrad {Ленинград} 006-Stereo {006-Стерео}

• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad NOVATOR Works

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141068

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 52

• Semiconductors
• ГТ313 ГТ322 КТ339 КТ361 КТ807 ГТ404 КП103 МП38 МП41 ГТ703 ГТ705 К2УС371 КВС111 Д901 Д18 Д814 Д105 Д223 КС156А

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Leningrad {Ленинград} 006-Stereo {006-Стерео} - Leningrad NOVATOR Works

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 390 x 394 x 164 mm / 15.4 x 15.5 x 6.5 inch

• Notes

• Portable high class stereo radio set. Coverage LW, 2 MW bands, 5 SW bands(24,6-75,9 meter) and FM(65,8-73,0 MHz). Three fix FM frequency preset buttons.

  Semiconductor list: only once per type.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• -- Schematic

• Mentioned in
• - - Data from my own collection

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
