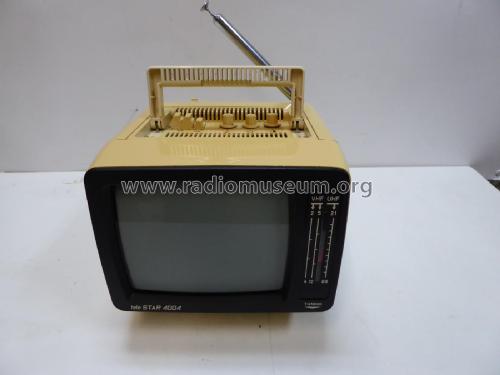

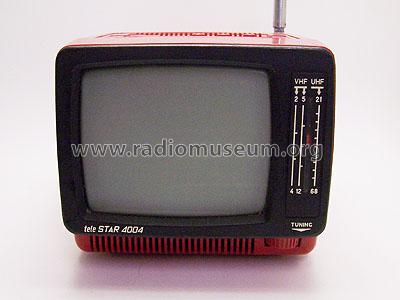

Tele Star 4004

• Country
• Soviet Union

• Manufacturer / Brand
• Mezon Works, Leningrad

• Year
• 1988

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 111007

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 16ЛК8Б

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Tele Star 4004 - Mezon Works, Leningrad

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 180 x 160 x 210 mm / 7.1 x 6.3 x 8.3 inch

• Notes

• Mezon Tele Star 4004;
  16-cm-Portable, Exportgerät des Elektronika 408, VHF/UHF K21-68, CCIR-Norm;
  Autoanschluß, Teleskopantenne.
  Wurde in Westeuropa u.a. als Waltham Tele Star 4004 verkauft.

  Verschiedene Gehäusefarben.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 99.00 DM

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
