• Country
• United States of America (USA)

• Manufacturer / Brand
• Radion Corp, The; Chicago Ill, USA

• Year
• 1950 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 231848

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1AD4 1AE4 1AE4 1AE4 1AE4

• Number of Transistors

• Semiconductors
• CK705 CK706

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage and/or dry batteries / 3 x 45 & 2 x 1.5 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Metal case

• from Radiomuseum.org

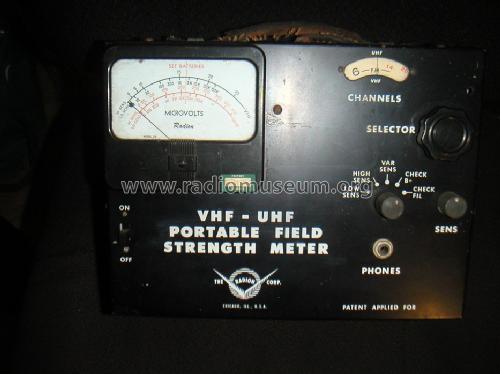

• Model: VHF-UHF Portable Field Strength Meter - Radion Corp, The; Chicago Ill,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11 x 8.5 x 7 inch / 279 x 216 x 178 mm

• Net weight (2.2 lb = 1 kg)
• 5 lb 13 oz (5.813 lb) / 2.639 kg

• Author
• Model page created by William Noble. See "Data change" for further contributors.
