Amplificatore portatile 110
LESA ; Milano
- Country
- Italy
- Manufacturer / Brand
- LESA ; Milano
- Year
- 1948 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 259191
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Amplificatore portatile 110 - LESA ; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 390 x 190 x 350 mm / 15.4 x 7.5 x 13.8 inch
- Notes
-
Fonovaligia in metallo, giradischi 78 giri, con puntina d'acciaio.

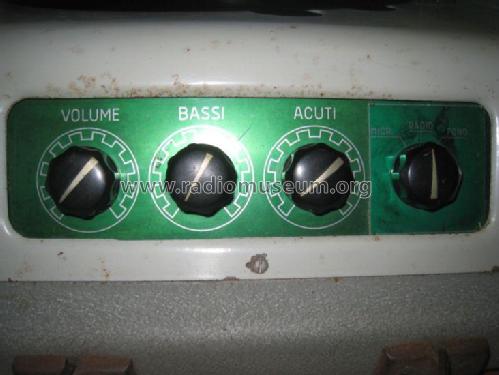

Regolatori di volume et di toni bassi et alti.
Presa radio, ingresso microfono.Questo modello è dotato di un coperchio di metallo.
- Net weight (2.2 lb = 1 kg)
- 14.5 kg / 31 lb 15 oz (31.938 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
