Lesaphon 21 legno
LESA ; Milano
- Country
- Italy
- Manufacturer / Brand
- LESA ; Milano
- Year
- 1952 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 206589

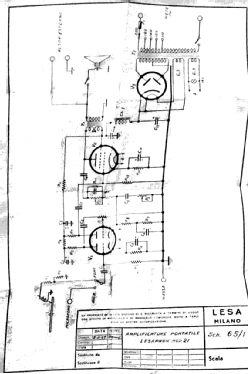

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Lesaphon 21 [legno] - LESA ; Milano
- Shape
- Tablemodel, low profile (big size).
- Notes
-

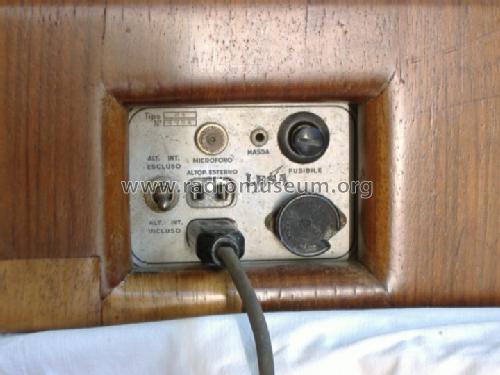

Giradischi a tre velocità (33 1/3, 45, 78) con testina intercambiabile per dischi normali e microsolco. Presa altoparlante esterno. Mobile in legno impiallacciato radica di noce.
Lesaphon 21 è un modello in mobile di metallo. Un modello con mobile in legno è per esempio Lesaphon 23. È possibile che il mobile sia stato cambiato, ma la griglia dell'altoparlante è atipica per Lesa. Rimane da determinare.
- Author
- Model page created by Alessandro Filippig. See "Data change" for further contributors.
