Lesaphon 26
LESA ; Milano
- Country
- Italy
- Manufacturer / Brand
- LESA ; Milano
- Year
- 1955
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 212386
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Lesaphon 26 - LESA ; Milano
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 370 x 190 x 430 mm / 14.6 x 7.5 x 16.9 inch
- Notes
- Giradischi a 3 velocità (33 45 78 giri minuto) con commutatore pressione puntina e ingresso microfonico, uscita per altoparlante esterno aggiuntivo.
3-speed Turntable (33 45 78 rpm) with Stylus Pressure switch, microphone input, output for additional external speaker.
- Author
- Model page created by Aldo Molina. See "Data change" for further contributors.
- Other Models
-
Here you find 238 models, 208 with images and 84 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from LESA ; Milano
Collections
The model Lesaphon is part of the collections of the following members.
Forum contributions about this model: LESA ; Milano: Lesaphon 26
Threads: 1 | Posts: 3

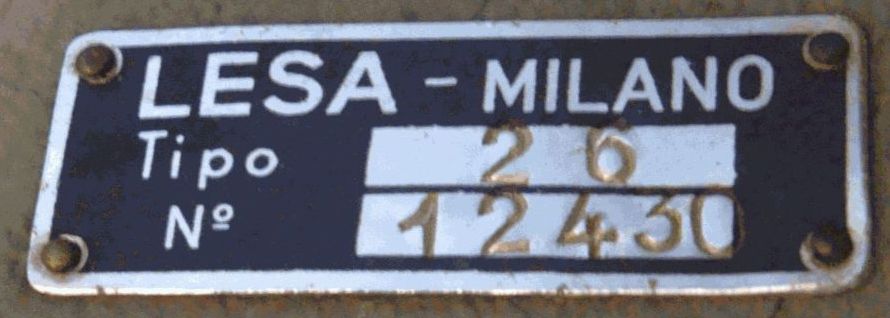

Buon giorno, ho trovato un giradischi che assomiglia moltissimo a questo, ma l'etichetta riporta mod 26 e c'è una data: 31 AGO 1955. Posso mettere le foto qui o devo creare un nuovo modello? Le valvole sono le seguenti: EL41 ECC83 EZ40. Grazie, Aldo Molina
Attachments
Aldo Molina, 04.Feb.12
