• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1970 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 271344

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• 2E2 2E2

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Alimentatore AL-9 - LESA ; Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 97 x 68 x 80 mm / 3.8 x 2.7 x 3.1 inch

• Notes

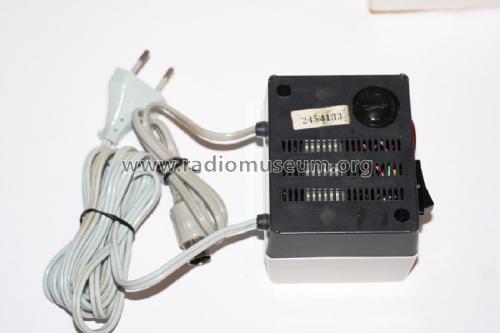

• L'alimentatore AL 9 fornisce una tensione continua di 9 V (al 10%) ed è progettato per il funzionamento di dispositivi alimentati a batteria, con un debito massimo di 400mA.

  Ha un commutatore di tensione di rete e una spina DIN a tre poli da collegare al dispositivo.

  Utilizzabile sui modelli MadyRad, Mady, Mady 2, Mady 3.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Mentioned in
• -- Original prospect or advert

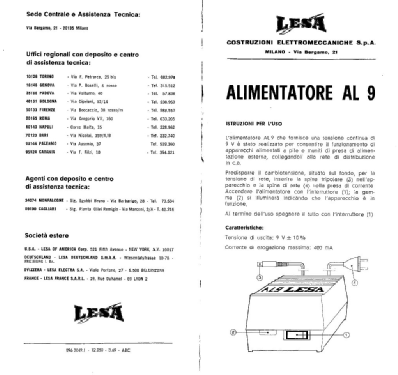

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Giancarlo Colella. See "Data change" for further contributors.
