• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1960 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 239620

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

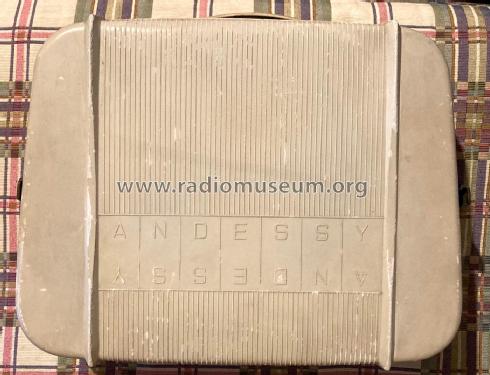

• Model: Andessy AD-1 - LESA ; Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 140 x 250 mm / 13 x 5.5 x 9.8 inch

• Notes

• Fonovaligia 16, 33, 45, 78 giri

  Rectifier diode - controllo volume/tono - spia accensione - testina rotante 45/78 - maniglia di trasporto

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by Luciano Delpani. See "Data change" for further contributors.
